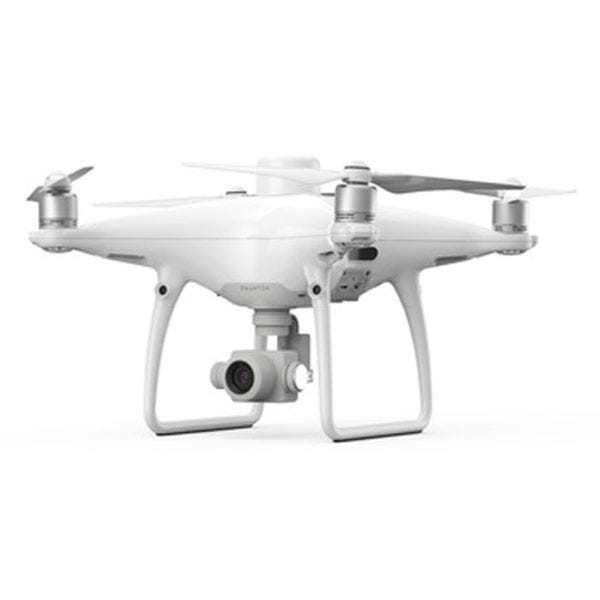

| Aircraft |
| Takeoff Weight |
1391 g |
| Diagonal Distance |
350 mm |
| Max Service Ceiling |
19685 ft (6000 m) |
| Max Ascent Speed |
6 m/s (automatic flight); 5 m/s (manual control) |
| Max Descent Speed |
3 m/s |
| Max Speed |
31 mph (50 kph) in P-mode; 36 mph (58 kph) in A-mode |
| Max Flight Time |
Approx. 30 minutes |
| Operating Temperature Range |
32° to 104° F (0° to 40℃) |
| Operating Frequency |
2.400 GHz to 2.483 GHz (Europe, Japan, Korea); 5.725 GHz to 5.850 GHz (United States, China) |
| Transmission Power (EIRP) |
2.4 GHz CE (Europe) / MIC (Japan) / KCC (Korea): < 20 dBm; 5.8 GHz SRRC (China) / FCC (USA): < 26 dBm |
| Hover Accuracy Range |
RTK enabled: Vertical: ±0.1 m; Horizontal: ±0.1 m; RTK disabled: Vertical: ±0.1 m (vision), ±0.5 m (GNSS) |
| Image Position Offset |
Camera center position relative to D-RTK antenna: (36, 0, 192 mm) applied to image coordinates in Exif data |
| Mapping Functions |
| Mapping Accuracy |
Meets ASPRS Accuracy Standards for Digital Orthophotos Class III |
| Ground Sample Distance (GSD) |
(H/36.5) cm/pixel (H = altitude in meters) |
| Data Acquisition Efficiency |
Max operating area of approx. 1 km² for a single flight at 182 m altitude (GSD approx. 5 cm/pixel) |
| Vision System |
| Velocity Range |
≤31 mph (50 kph) at 6.6 ft (2 m) above ground with adequate lighting |
| Altitude Range |
0-33 ft (0 - 10 m) |
| Obstacle Sensing Range |
2-98 ft (0.7-30 m) |
| FOV |
Forward/Rear: 60° (horizontal), ±27° (vertical); Downward: 70° (front and rear), 50° (left and right) |
| Measuring Frequency |
Forward/Rear: 10 Hz; Downward: 20 Hz |
| Operating Environment |
Surfaces with clear patterns and adequate lighting (> 15 lux) |
| Camera |
| Sensor |
1" CMOS; Effective pixels: 20 MP |
| Lens |
FOV: 84°; 8.8 mm / 24 mm (35 mm format equivalent: 24 mm); f/2.8 - f/11, autofocus at 1 m - ∞ |
| ISO Range |
Video: 100-3200 (Auto), 100-6400 (Manual); Photo: 100-3200 (Auto), 100-12800 (Manual) |
| Mechanical Shutter Speed |
8 - 1/2000 s |
| Electronic Shutter Speed |
8 - 1/8000 s |
| Max Image Size |
4864 × 3648 (4:3); 5472 × 3648 (3:2) |
| Video Recording Modes |
H.264, 4K: 3840 × 2160 @ 30p |
| Photo Format |
JPEG |
| Video Format |
MOV |
| Supported File Systems |
FAT32 (≤ 32 GB); exFAT (> 32 GB) |
| Supported SD Cards |
MicroSD, Max Capacity: 128 GB; Class 10 or UHS-1 rating required; Write speed ≥ 15 MB/s |
| Operating Temperature Range |
32° to 104° F (0° to 40℃) |
| Intelligent Flight Battery |
| Capacity |
5870 mAh |
| Voltage |
15.2 V |
| Battery Type |
LiPo 4S |
| Energy |
89.2 Wh |
| Net Weight |
468 g |
| Charging Temperature Range |
14° to 104℉ (-10° to 40℃) |
| Max Charging Power |
160 W |
| Intelligent Battery Charging Hub |
| Input Voltage |
17.3 - 26.2 V |
| Output Voltage and Current |
8.7 V, 6 A; 5 V, 2 A |
| Operating Temperature |
41° to 104℉ (5° to 40℃) |
| GNSS |
| Single-Frequency GNSS Module |
GPS + BeiDou + Galileo (Asia); GPS + GLONASS + Galileo (other regions) |
| Multi-Frequency RTK GNSS |
GPS: L1/L2; GLONASS: L1/L2; BeiDou: B1/B2; Galileo: E1/E5a |
| First-Fixed Time |
< 50 s |
| Positioning Accuracy |
Vertical: 1.5 cm + 1 ppm (RMS); Horizontal: 1 cm + 1 ppm (RMS) |
| Gimbal |
| Stabilization |
3-axis (tilt, roll, yaw) |
| Pitch |
-90° to +30° |
| Max Controllable Angular Speed |
90°/s |
| Angular Vibration Range |
±0.02° |
| Infrared |
| Obstacle Sensing Range |
0.6-23 ft (0.2 - 7 m) |
| FOV |
70° (Horizontal); ±10° (Vertical) |
| Measuring Frequency |
10 Hz |
| Operating Environment |
Surface with diffuse reflection material, reflectivity > 8% (e.g., wall, trees, humans) |
| Remote Controller |
| Operating Frequency |
2.400 GHz - 2.483 GHz (Europe, Japan, Korea); 5.725 GHz - 5.850 GHz (United States, China) |
| Transmission Power (EIRP) |
2.4 GHz CE / MIC / KCC: < 20 dBm; 5.8 GHz SRRC / FCC: < 26 dBm |
| Max Transmission Distance |
FCC: 4.3 mi (7 km); SRRC / CE / MIC / KCC: 3.1 mi (5 km) (Unobstructed, free of interference) |
| Power Consumption |
16 W (typical value) |
| Display |
5.5 inch screen, 1920 × 1080, 1000 cd/m², Android System; Memory 4G RAM + 16G ROM |
| Operating Temperature Range |
32° to 104° F (0° to 40℃) |
| Intelligent Flight Battery Charging Hub |
| Voltage |
17.5 V |
| Operating Temperature Range |
41° to 104℉ (5° to 40℃) |
| Capacity |
4920 mAh |
| Voltage |
7.6 V |
| Battery Type |
LiPo 2S |
| Energy |
37.39 Wh |
| Operating Temperature |
-4° to 104℉ (-20° to 40℃) |
| AC Power Adapter |
| Voltage |
17.4 V |
| Rated Power |
160 W |
