Product Description
Woody Equipment 10′ Road Trailer Model 10-66 HV-R with Gooseneck Log Loader Model 115 HD & 130 HD | Pull Type | For Small Trucks & Tractors
Description
TheWoody Equipment 10′ Road Trailer Model 10-66 HV-RwithGooseneck Log Loader Models 115 HD & 130 HDis a versatile and robust piece of equipment designed for efficient logging and transportation tasks.
This equipment is ideal for small-scale forestry operations, providing a reliable and efficient solution for handling and transporting logs. If you need more detailed specifications or have specific questions, contact us.
Key Features
Trailer Length: 10 feet, making it compact and easy to maneuver.
Gooseneck Log Loader: Available in two models, 115 HD and 130 HD, providing options based on your specific needs.
Pull Type: Designed to be towed by small trucks and tractors, offering flexibility in various working environments.
Construction: Built with durable materials to withstand heavy-duty use in forestry and logging operations.
Versatility: Suitable for a range of tasks, from hauling logs to transporting equipment.
This trailer and log loader combination is ideal for forestry operations, offering a balance of durability, capacity, and versatility.
Note: Each trailer model is interchangeable with each loader model.
Detailed Specifications

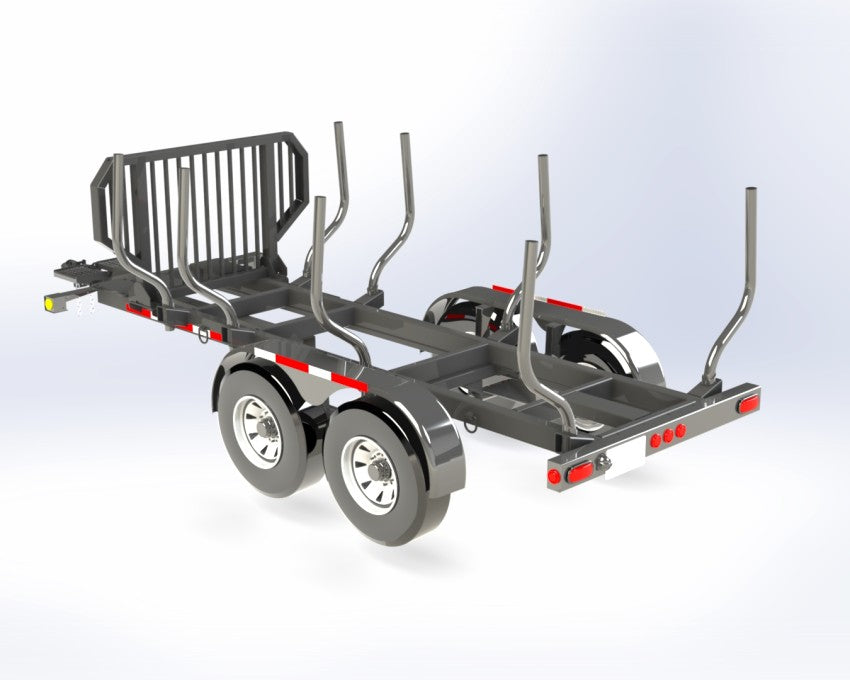

Forestry Trailer
Category
Details
Compatible with Log Loaders
Log loader 115 HD, Log loader 130 HD
DIMENSIONS
Load length
120’’ (10’')
Overall length
193’’ (16’ 1’')
Overall Width
68’’
Gross trailer weight
2779 Lb
CAPACITY
Axle capacity
5000 Lb / each one
Trailer tonnage
6 Tons / 12000 Lb
Volume
154 cubic feet<br>0.48 squares feet
CHARACTERISTICS
Protective Grid
Yes
Number of posts
8
Tires
ST235-80-R16 LRG 16 x 6
Electric brake on each wheel
Yes
Brake light, front light, flashing
Yes
Immatriculation plate light
Yes
Security chain
Yes
Hitch ball
2 5/16 adjustable
Anchors to strap your load
6
Reflective tape
Yes

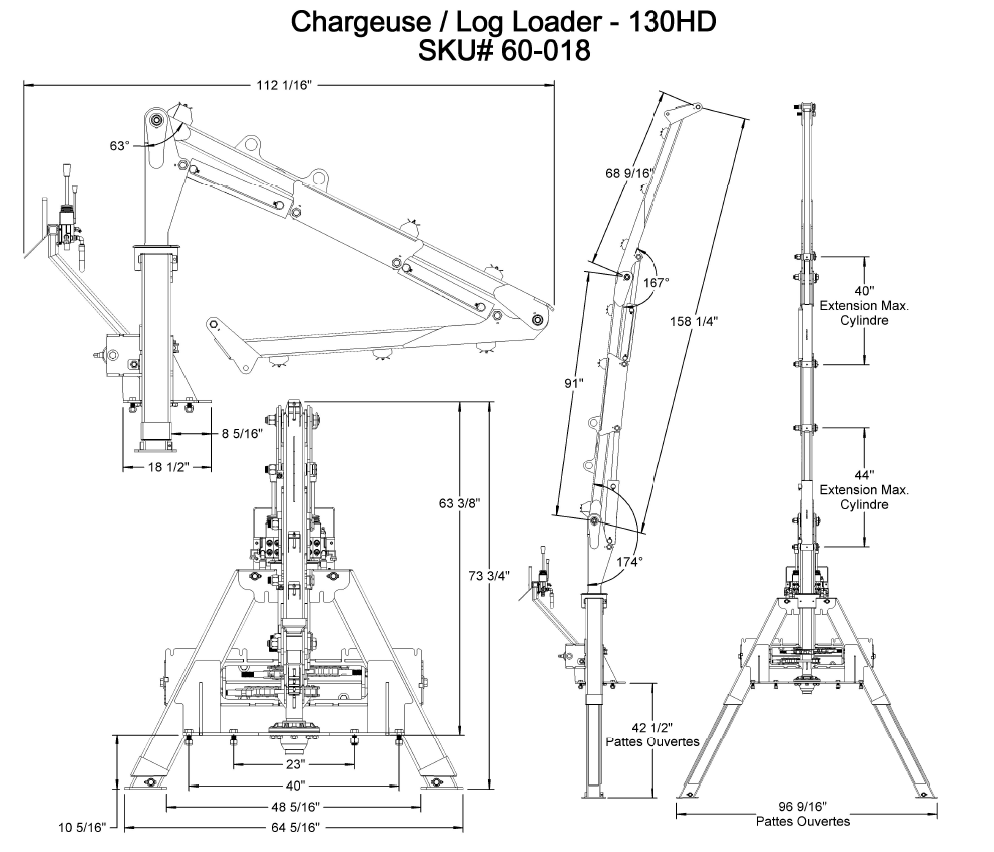

Log Loader
Category
115-HD
130-HD
REACH
11' 6''
13’
LIFT CAPACITY
Maximum Range
1000 lbs
1400 lbs
Mid Range
2000 lbs
2800 lbs
WEIGHT (WITHOUT TRAILER)
1250 lbs
1800 lbs
INFORMATIONS
Grapple
36'' with 360° rotation (57-020)
36’’ with 360° rotation (57-020), 42’’ with 360° rotation (57-017)
Maximal rotor capacity
3000 KG
3000 KG
OPTIONS
6000 lb Winch
58-007
Power unit
5.5HP (53-002)
9HP (53-006) / 13HP (53-003)
Rack and Pinion
110050
110050
Bucket 14’’ & 18’’
14’’ (56-002) / 18’’ (56-003)
14’’ (56-002) / 18’’ (56-003)
10’ Gravel bin
31-040
31-040
