Product Description
Woody Equipment 8' 9'' Forestry Trailer Model 9-58 HV with Gooseneck Log Loader Model 105 HD | Pull Type | For Compact Tractors | 20 HP - 40HP
DESCRIPTION
Woody Equipment is proud to present our new9-58 HVforestry trailer. This innovative design lowers the center of gravity, allowing for more wood to be transported safely and efficiently. The trailer is compatible with both the95HDand105HDlog loaders, offering flexibility and versatility for various forestry tasks.
This combination of the 9-58 HV trailer and the 105-HD Log Loader is ideal for those looking to maximize their efficiency and productivity in forestry operations. Whether you’re transporting logs or performing other forestry tasks, this equipment is designed to meet your needs with reliability and ease
The 105-HD Woody Log Loader is a versatile loader that is both lightweight and powerful. With its low profile height and a boom reach 10' 6", this loader will help you perform multiple jobs both in the sugar bush and forest. Designed specifically for 20 - 40 HP tractor.
Key Features
Compatibility: Designed for compact tractors with 20 HP to 40 HP.
Boom Length: 10’6" for extended reach.
Boom Rotation Swing: 270° for versatile maneuverability.
Loader Column Height: 53" for optimal loading height.
Lifting Capacity:
At maximum reach: 650 lb.
At mid-range: 1,300 lb.
Recommended Flow: 3 - 4 gpm for efficient hydraulic operation.
Stabilizers: Telescopic for enhanced stability during operation.
Grapple:
Open: 28"
Close: 3"
Rotation (Continuous): 360° for full rotation capability.
Rotator Maximum Capacity: 1,000 kg for heavy-duty lifting.
Total Weight: 850 lb. (without trailer and hydraulic power unit).
Loader Options:
Hydraulic Winch: Available in 4,000 lb. and 6,000 lb. capacities.
Power Unit (Honda): 5.5 hp for reliable power.
Bucket Sizes: 14" or 18" for different loading needs.
This forestry trailer and log loader combination is ideal for those needing a robust and versatile solution for their forestry tasks.
Detailed Specifications
Forestry Trailer
Category
Details
Compatible with log loaders
log loader 95 HD, log loader 105 HD

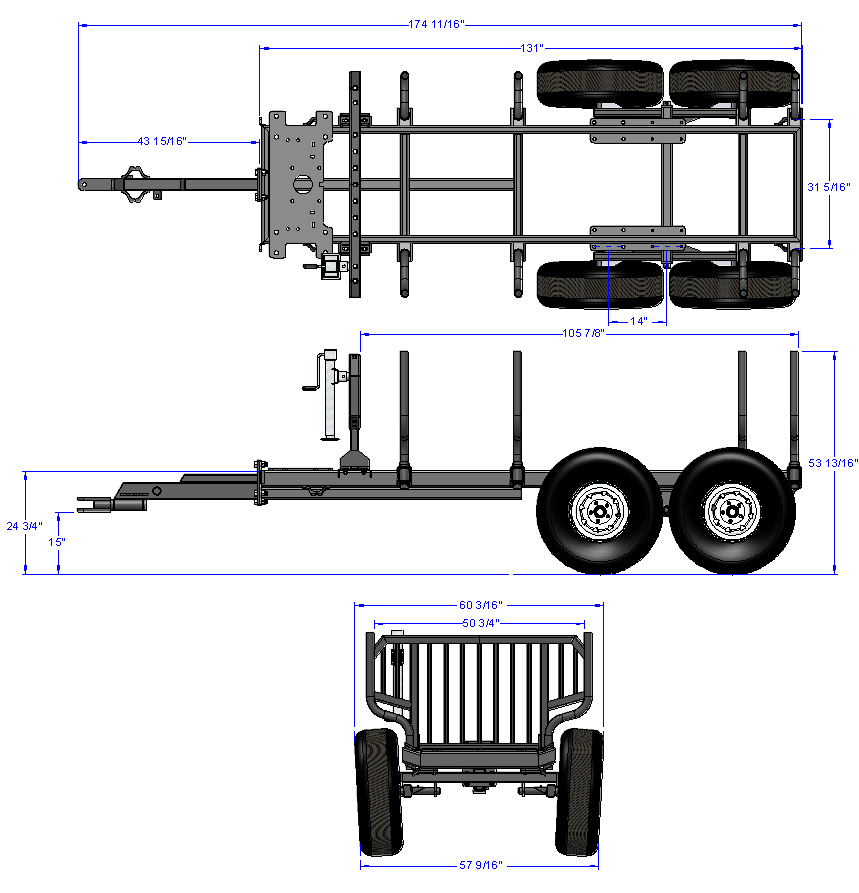

DIMENSIONS
Load length
105’’ (8’ 9’')
Overall length
174’’ (14’ 6’')
Overall Width
58’’
Gross trailer weight
1642 lb
CAPACITY
Axle capacity
3500 Lb / Chacun
Trailer tonnage
2 Tonnes / 4000 Lb
Volume
75.8 Cubic Feets
0.3 Wood Cords of (4’x8’x8’)
CHARACTERISTICS
Adjustable 24’’ hydraulic axle
manually
Protective Grid
inclusive
Number of posts
8
Tires
8 ply, 11L15
OPTION
SKI
Gravel bin 7’
Power unit 5.5HP
Single bolted drawbar with stool
Log Loader
Specification
105-HD
Compact Tractors
20 hp - 40 hp
Boom Length
10'6″
Boom Rotation Swing
270°
Loader Column Height
53"
Lifting Capacity at Maximum Reach
650 lb.
Lifting Capacity at Mid Range
1,300 lb.
Recommended Flow
3 - 4 gpm
Stabilizers
telescopic
Grapple Open
28"
Grapple Close
3"
Grapple Rotation (Continuous)
360°
Rotator Maximum Capacity
1,000 kg.
Total Weight (without trailer and hydraulic power unit)
850 lb.
Loader Options
Hydraulic Winch
4,000 and 6,000 lb.
Power Unit (Honda)
5.5 hp.
Bucket
14″ or 18″
