Product Description

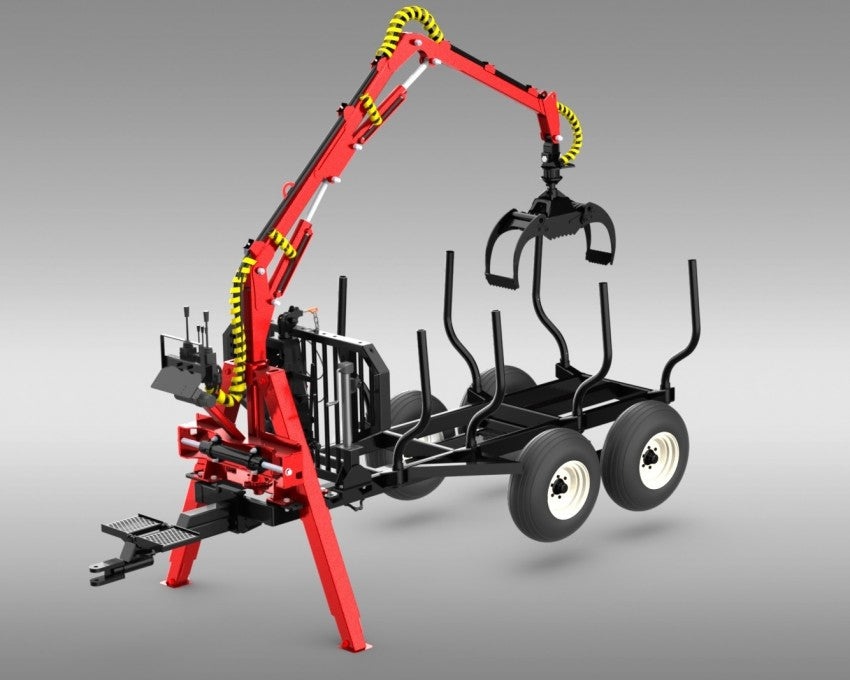

Woody Equipment 9' 9'' Forestry Trailer Model 10-66 HV with Gooseneck Log Loader Model 115 HD | Pull Type | For Tractors
DESCRIPTION
Introducing theWoody Equipment 9’ 9’’ Forestry Trailer Model 10-66 HV with Log Loader 115 HD– a game-changer in forestry equipment. This newly redesigned trailer boasts a lower center of gravity, enabling you to handle more loads with enhanced stability.
The10-66 HV traileris now compatible with the115-HD Log Loader, which is perfect for 30-70 HP compact tractors. The 115-HD model features an impressive boom reach of 11’ 6", making it a versatile and powerful tool for your forestry needs. Despite its lighter weight, the 115-HD Log Loader is just as well-equipped as larger models, offering an excellent balance between size and functionality.
Experience the efficiency and reliability of Woody Equipment’s latest innovation, designed to meet the demands of modern forestry operations.
Key Features
Functionality: What the product can do. For example, a smartphone’s ability to make calls, send messages, and access the internet.
Design: The appearance and aesthetics of the product. This includes the product’s size, shape, color, and overall look.
Performance: How well the product performs its intended functions. This can include speed, efficiency, and reliability.
Usability: How easy it is for users to interact with the product. This includes the user interface, controls, and overall user experience.
Compatibility: How well the product works with other products or systems. For example, a software application that can integrate with other software tools.
Durability: The product’s ability to withstand wear and tear over time.
Safety: Features that ensure the product is safe to use. This can include safety locks, warning labels, and compliance with safety standards.
Cost: The price of the product and its value for money.
These features are designed to address user needs, solve specific problems, and enhance the overall user experience

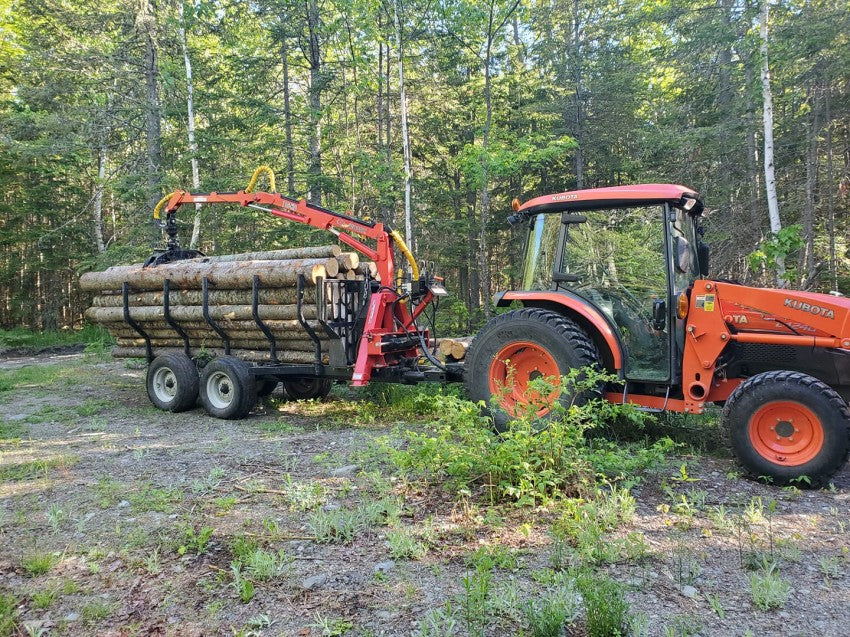

This forestry trailer and log loader combination is ideal for those needing a robust and versatile solution for their forestry tasks.
Detailed Specifications

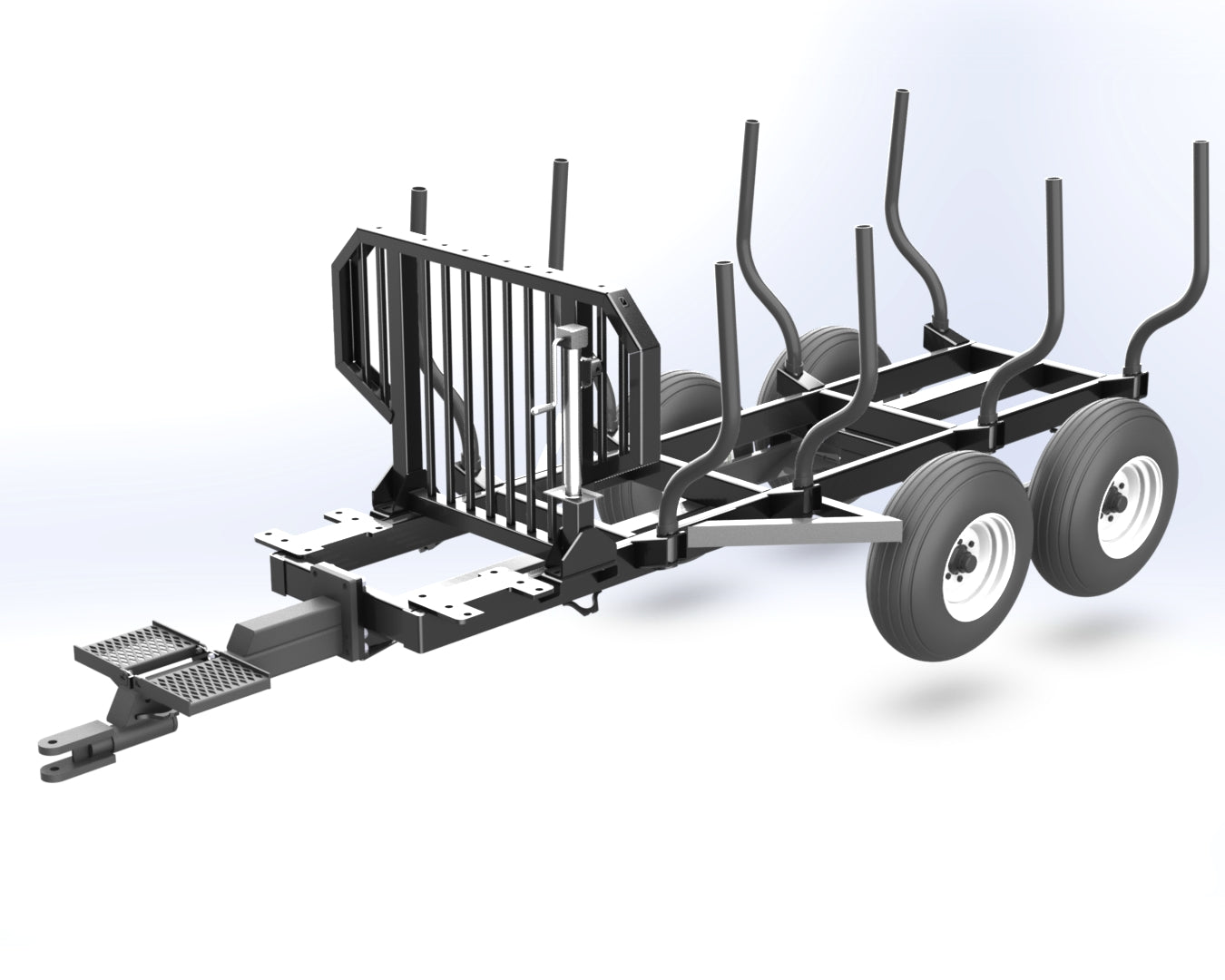

Forestry Trailer
Category
Details
Compatible with log loader
log loader 60-021 115 HD
DIMENSIONS
Load length
116’’ (9’ 9’')
Overall length
188’’ (15’ 7’')
Overall Width
69’’
Gross trailer weight
1796 lb
CAPACITY
Axle capacity
5000 Lb / chacun
Trailer tonnage
5 Tons / 10000 Lb
Volume
136.2 Cubic Feet
0.53 Wood Cords (4’x8’x8’)
CHARACTERISTICS
Protective Grid
inclusive
Number of posts
8
Tires
8 ply, 11L15
OPTION
Gravel bin 7’ with hydraulic cylinder
31-020
Power unit 5.5HP
53-002
Hydraulic articulation
59-076-03
Tires options
12.5L15, 10 plis
Log Loader
Feature
115-HD
Recommended Vehicle
Tractors 30 hp - 70 hp
Boom Length
11′ 6″
Boom Rotation Swing
300°
Loader Column Height
61″
Lifting Capacity at Max Reach
1,000 lb.
Lifting Capacity at Mid Range
2,000 lb.
Recommended Flow
4 - 6 gpm
Stabilizers
Telescopic
Grapple Open
36″
Grapple Close
3″
Grapple Rotation (Continuous)
360°
Rotator Maximum Capacity
3,000 kg.
Total Weight (Without Trailer)
1,250 lb.
Loader Options
Telescopic Boom
24″
Hydraulic Winch
6,000 lb.
Power Unit (Honda)
5.5 hp.
Bucket
14″ or 18″
