Product Description

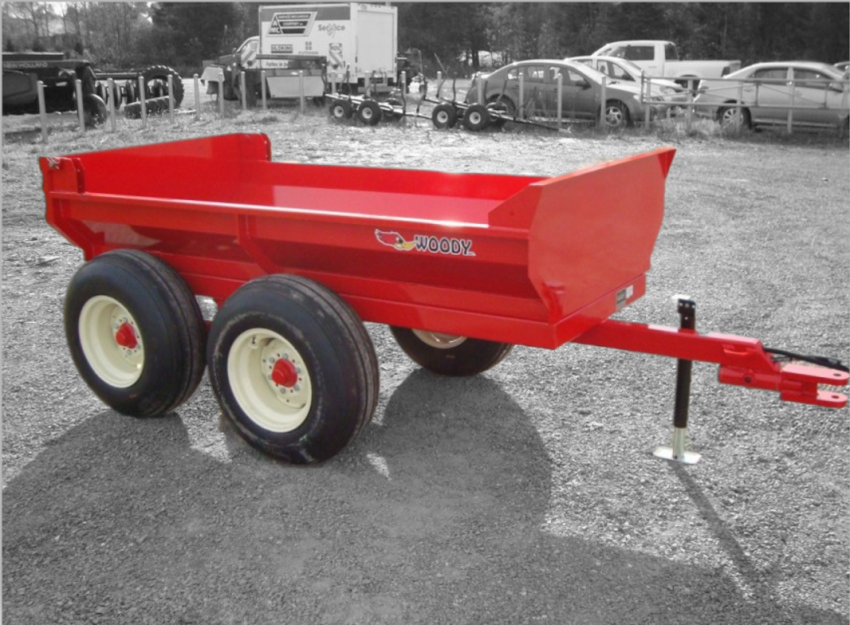

Woody Equipment Tilting Dump Trailer Model 407 & 408 V Series | 18-45 HP | Pull Type | For ATVs, Side by Sides & Small Tractors
Description
The Woody Equipment Tilting Dump Trailer Models 407 & 408 are versatile and efficient trailers designed for ATVs, Side by Sides, and small tractors with 18-45 HP. Perfect for a range of tasks, these trailers offer exceptional functionality and ease of use, making them ideal for light agricultural and forestry work.
These trailers are sturdy and reliable, making them an excellent choice for transporting materials around your property with ease. Their efficient design and robust construction ensure they can handle a variety of tasks, making them valuable additions to your equipment lineup.
Key Features
-
Recommended for: Compatible with vehicles ATVs, Side by Sides, and Small Tractors in the 18-45 HP range.
-
Load Capacity: Capable of handling significant loads, ensuring efficient transport of materials.
-
Tilting Dump Mechanism: Facilitates easy unloading, saving time and effort.
-
Durable Construction: Built with high-quality materials to withstand tough working conditions.
-
Hydraulic Power Unit (Optional): For effortless operation and enhanced functionality.
-
Adjustable Axle: Offers flexibility in positioning and ensures stability during transport.
-
Efficient Design: Designed to provide smooth and effective performance, perfect for maintaining large areas.
-
Automatic Rear Panel Opening: Simplifies the unloading process, making it more convenient.
-
Optional Grain Doors: Available for additional versatility.
-
Tandem Clevis Coupling: Standard for secure attachment to your vehicle.
-
2" Hitch Ball: Equipped with a fixed drawbar for a 2” ball hitch.
These features make this forestry trailer a versatile and robust choice for light forestry tasks.
Detailed Specifications
| Specification |
Model 407 |
Model 408 |
|
DIMENSIONS
|
|
|
| Trailer |
36" x 84" |
48" x 98" |
| Side Panel |
12.5" |
11" |
| Floor Height |
23.5" |
30" |
| Lateral Wall Height |
36" |
41" |
| Front and Back Panel (Removable) |
19" |
17.5" |
|
TECHNICAL SPECIFICATION
|
|
|
| Load |
3500 lb |
4 Ton |
| Axle |
5 bolts |
5 bolts |
| Axle Capacity |
3500 lb |
3500 lb |
| Cylinder |
2 x 25-18 simple actions |
2 x 25-18 simple actions |
| Manual Trailer Hitch |
3 tons |
3000 lb |
|
VOLUME
|
|
|
| Without Extra Side Panel |
19 cubic feet |
27 cubic feet |
| With Extra Side Panel |
26 cubic feet |
43 cubic feet |
|
INFORMATIONS
|
|
|
| Back Panel Opening |
Automatic |
Automatic |
| Grain Doors |
Optional |
Optional |
| Axle |
Tandem |
Tandem |
| Clevis Coupling |
Standard |
Standard |
| Standard Tires |
23 10.5-12, 6 ply |
11 L 15, 8 Ply |
| 2" Hitch Ball |
2" |
-- |
|
WEIGHT
|
|
|
| Approx Weight |
900 lb |
1200 lb |
